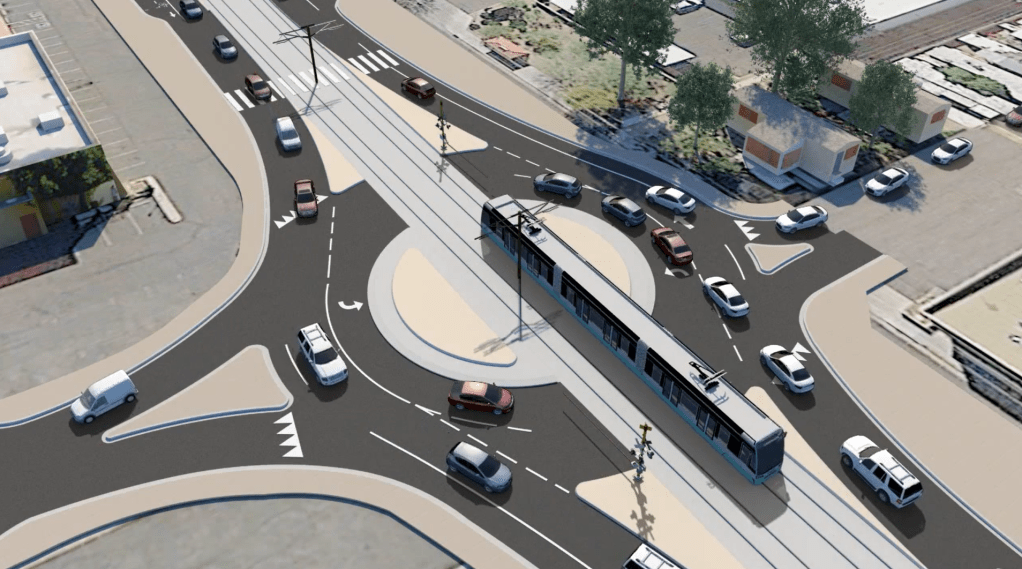

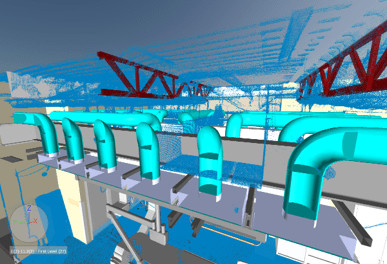

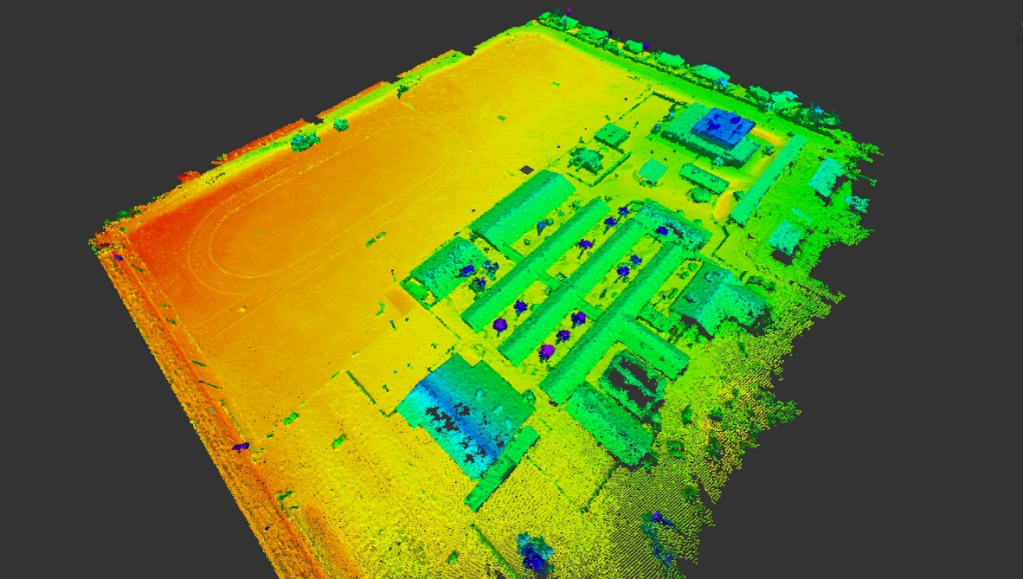

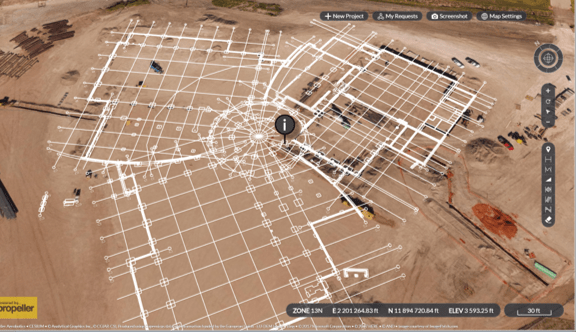

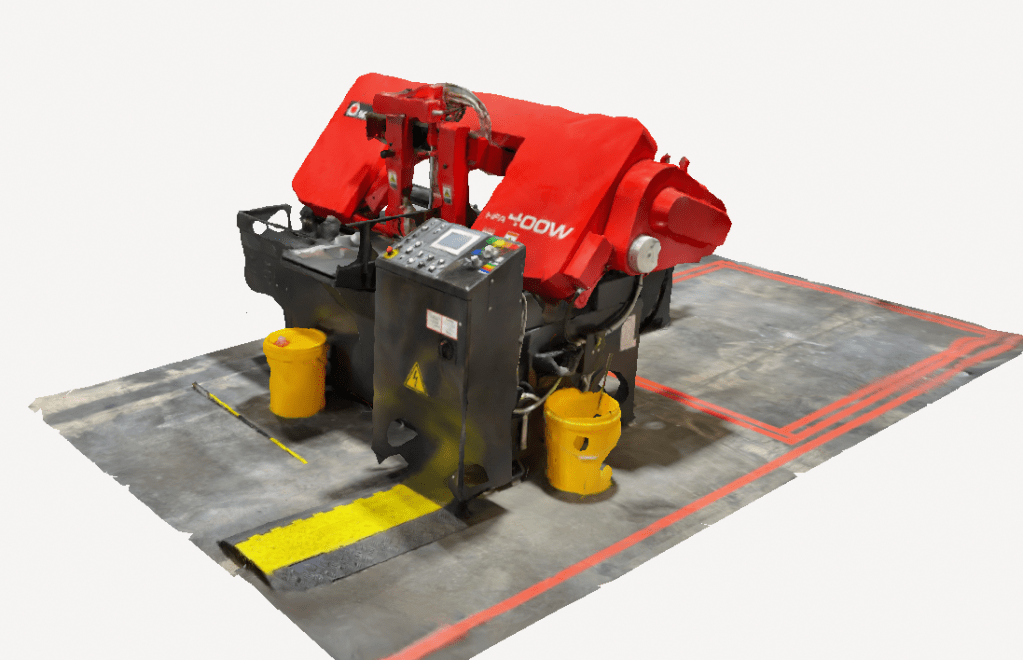

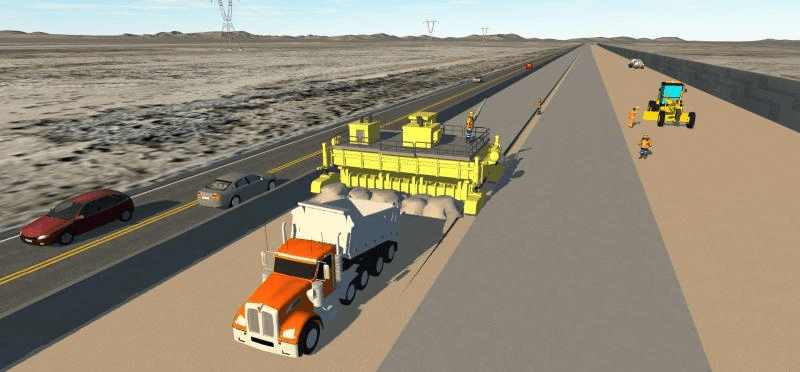

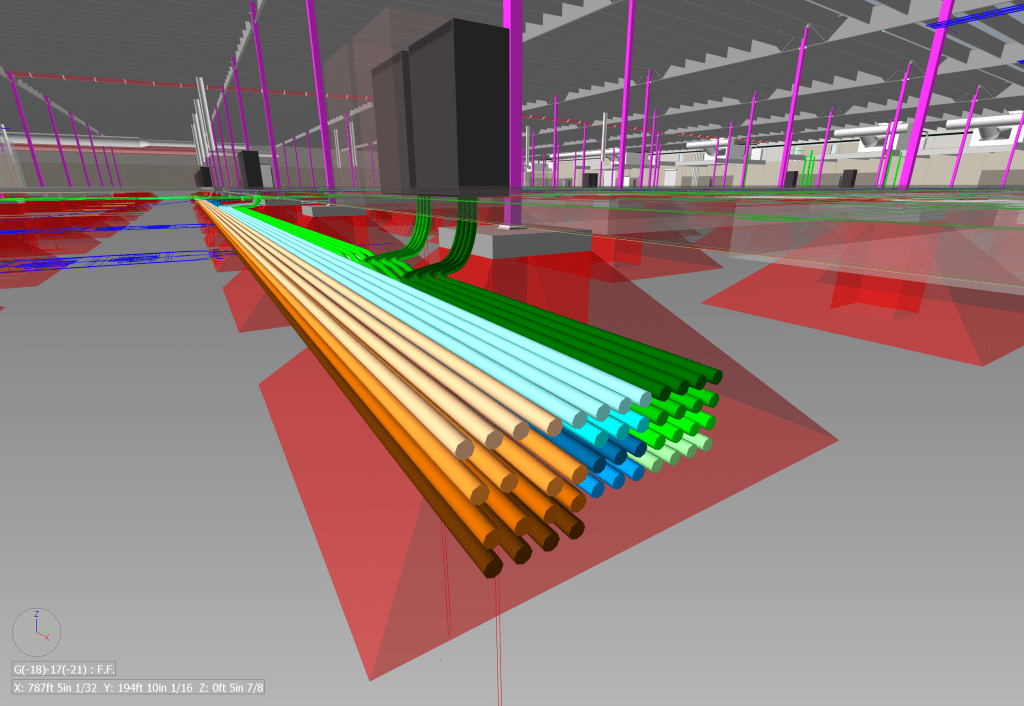

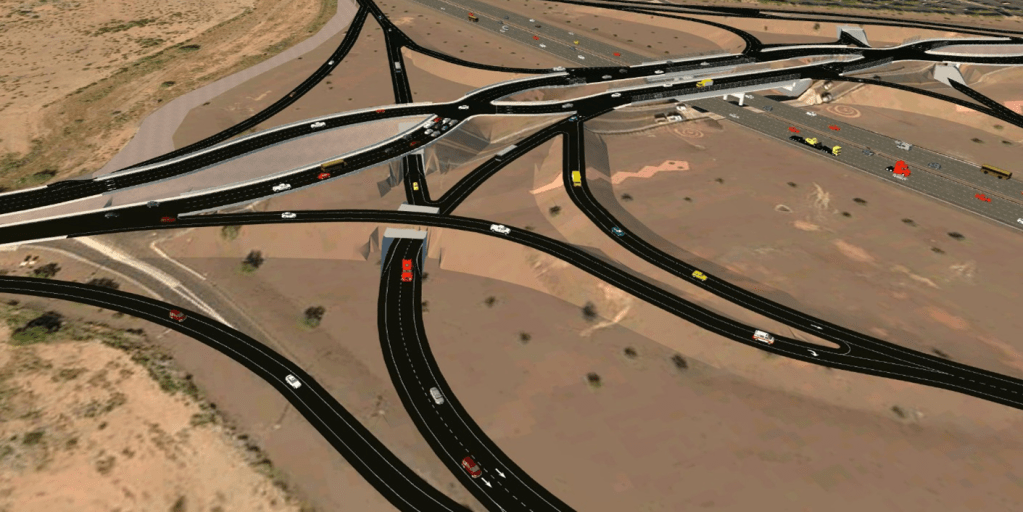

A Light Rail Roundabout animation using Autodesk Infraworks. Final rendering with 3DS Max and V-ray.Created a quick process for capturing 3D equipment to use in Revit. Used the spatial information to better understanding equipment clearances for future placement.Civil highway temporary closure visual created using Infraworks.Industrial underground electrical conduit layout for 140 – 4″ conduits. Red shows the SES cabinets next to columns and we had to avoid the angle of repose (column loads).Infraworks model showing a double diamond highway overpass.Drone ortho image overlay with CAD for logistics planning.Elevation heatmap to visualize slope of multi-acre property.3D laser scan to help visualize fireproofing on steel structures.
